GEC Account Manager (New restyling!)

Register to the GEC Account to share all your Aqua Map charts with 5 different devices (Apple and Android).


Follow these steps:

1) Register your GEC Account here. Be sure to complete the registration clicking on the link in the email you will receive.
2) Open your app, open the setting page (lower right wheel icon), login to your GEC Account. At this point all your purchased charts, from this app, will be recorded into your GEC Account (repeat the same if you have more Aqua Map apps).
3) Install the free app (Aqua Map Marine, Aqua Map Lakes) on your other device and then login to the GEC Accout. All the previously recorded apps will be available also with the new device (Max 5 different devices can be used).

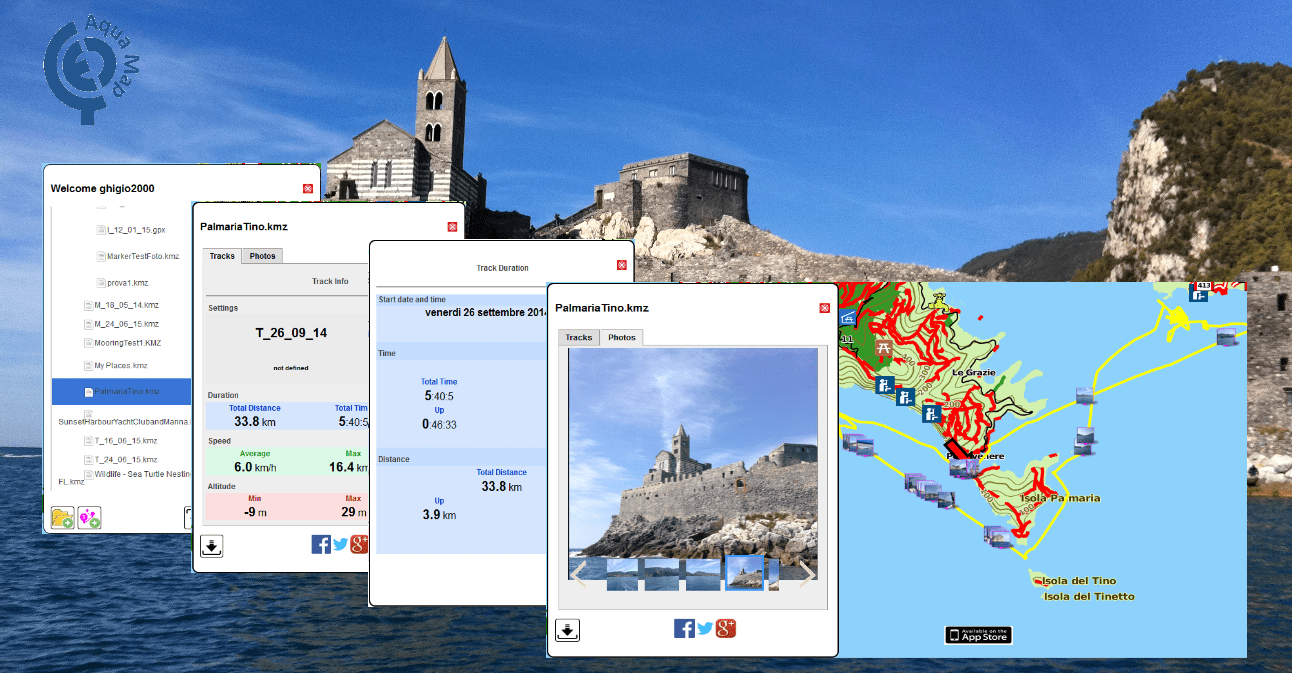

Here is your User Area! Now you have a place to archive your Boating/Fishing experience and exchange them with the Aqua Map App.
You can record a GPS track, draw a Route, create Markers and shot Photos with your App and then send the whole to your GEC Account.
From the GEC Account you will be able to organize, manage and relive all your experience.
Not only, you will be able to draw at home a new Route/Itinerary while planning your next trip: drawing routes, adding markers and copying features from other archives, etc.. Then recall the new Route from your App to be followed while on the boat.
You need to free space on your smartphone? No problem, if you archived your files on the GEC Account you can reload them on the App anytime.

Register and Login to your GEC account

Register your GEC Account to enable all the below described functionalities.

NOTE: We are not responsible for any damage may be caused by using this tool. By using our websites, products, services you agree to the below Terms of Use, please read them carefully before proceeding.
Terms of Use

Archive

Once logged-in your Archive will be displayed on the left in a File Manager environment.

From the File Manager (left side panel) you can:
From the Map (right side panel) you can:

Recall your experience

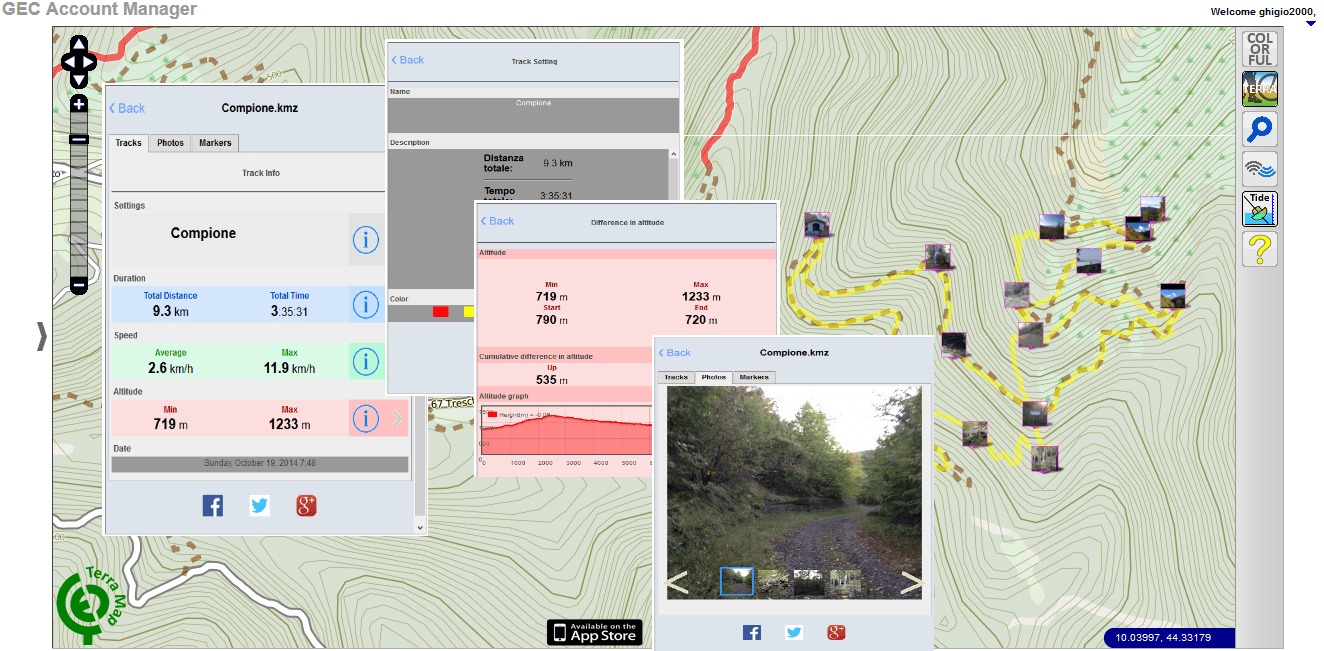

Selecting one of your archived files the system will overlay it on the map.
Here you will access all the information present in the file including track statistics, markers, photos and routes, if available.
View altitude (obiouvsly not interesting for the Aqua version) and speed graphs and relive the entire experience recalling all the pictures and their location when you were on the water.
press these icons to share this file on the major social networks.

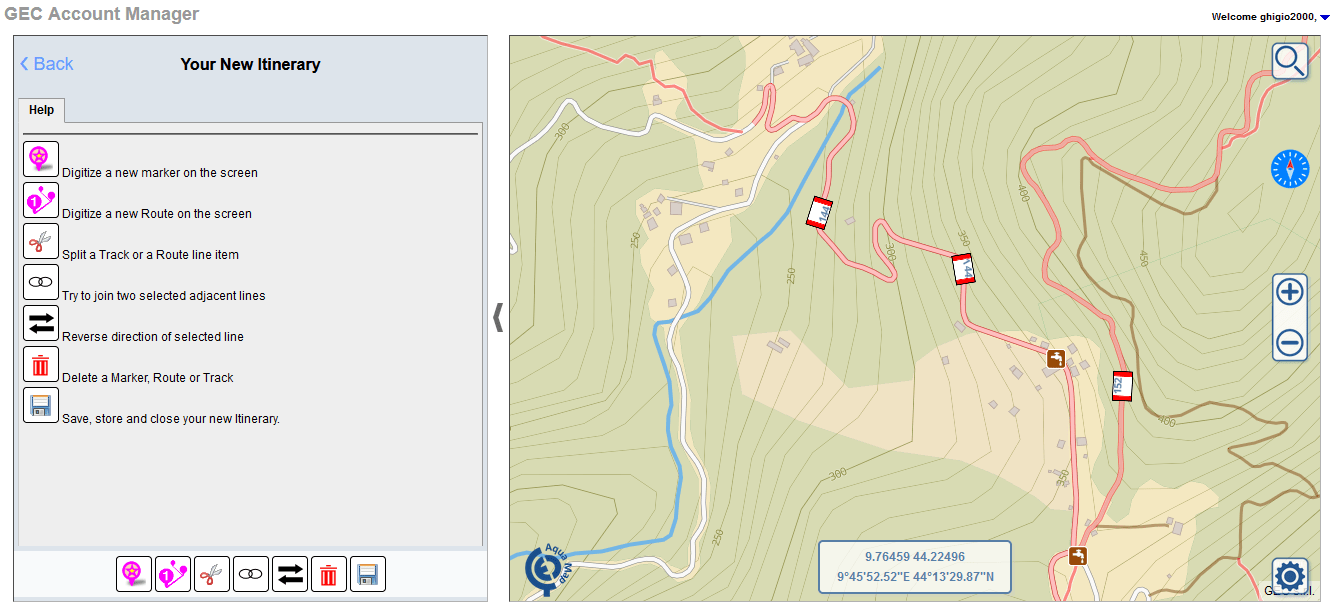

Create a new Route/Itinerary

Here below we will try to describe the available tools for the scope.
A new Route/Itinerary means a collection of Tracks, Markers, Routes and Photos to be stored into a single file (GPX, KML or KMZ) that can be transferred to an Marine Navigation App or Chart Plotter. This file will be generated by the system and archived in your User Area with the name you defined (automatic numbering will be applied in case of duplication).
Once the file is saved you will be able to download it, share on the major social networks or load into your Aqua Map ("Import from your GEC Account").

From this view you can perform all below activities, once a button is pressed it will turn to "orange" and the function will be active until you press it again or press another button:

Add a new marker on the screen. Once you added a new Marker you will be able to assign a name,a description, change the icon and add a photo. You can change them anytime until you will save the current new Route/Itinerary.

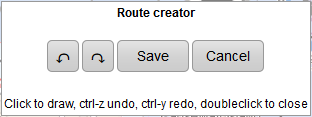

Digitize a new Route on the screen. Click on the map to place the next Route's waypoint (this will be represented by an icon showing a progressive numbering, the distance from the previous waypoint, the total distance and the kompass angle from the previous waypoint). A popup dialog will be open to help you while digitizing the route . This dialog will help you Undo the last point, Redo the last undo, Save or Cancel the digitalization. Once you added the new Tour you will be able to assign a name, a description and a color. You can change them anytime until you will save the current new Route/Itinerary.

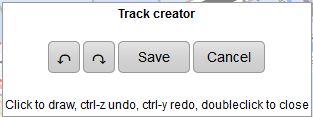

Digitize a free line on the screen. This will be stored as a track into the final file.A popup dialog will be open to help you while digitizing the route . This dialog will help you Undo the last point, Redo the last undo, Save or Cancel the digitalization. Once you added the new Tour you will be able to assign a name, a description and a color. You can change them anytime until you will save the current new Route/Itinerary.
Using this tool you will be able to change the Markers, Routes and Tracks position or shape (also adding new intermediate waypoint). Select the object and drag it to the new position. Only items belonging to the new Route/Itinerary can be modified.
Pressing this icon you will enter the "Split" functionality. This can be used to split a linear feature (Track or Route) into two separate objects. First select the feature you would split, then click on the position you want the splitting.
Pressing this icon you will be able to join two or more line objects together (they must belong to the same type: route or track).
Reverse lines. Once this tool is active, select any line to reverse its points order.
This tool will permit to copy features (Markers, Photos, Tracks or Routes) from other archived files. Once this icon is selected it will open a File Manager dialog from which you can hide/show existing files on the map (click on the checkbox). The map will be splitted in two, the upper part showing existing files selected and the lower part showing your new Route/Itinerary. At this point click on objects from the Upper map to add/remove them from your new Route/Itinerary.
Pressing this button you will be able to delete any object of your new itinerary. There is not an Undo function, so be careful while removing objects.
Save, store in your archive and close the editing session of your Route/Itinerary. Type the name of the file (in case of duplication a progressive number will be added) and chose the format GPX or/and KMZ/KML you want to save.

In general a new Route/Itinerary can be modified only until you Save it. You can modify name and description of all its items, but remember that duplicated names are not allowed for items of the same type (Marker, Route, Track) within the same file, so the system might automatically rename them when you propose a duplicated name.


NOTE: to modify an existing Route/Itinerary file you can select it from the file manager, right click and select "Edit as new itinerary" from the context menu.
